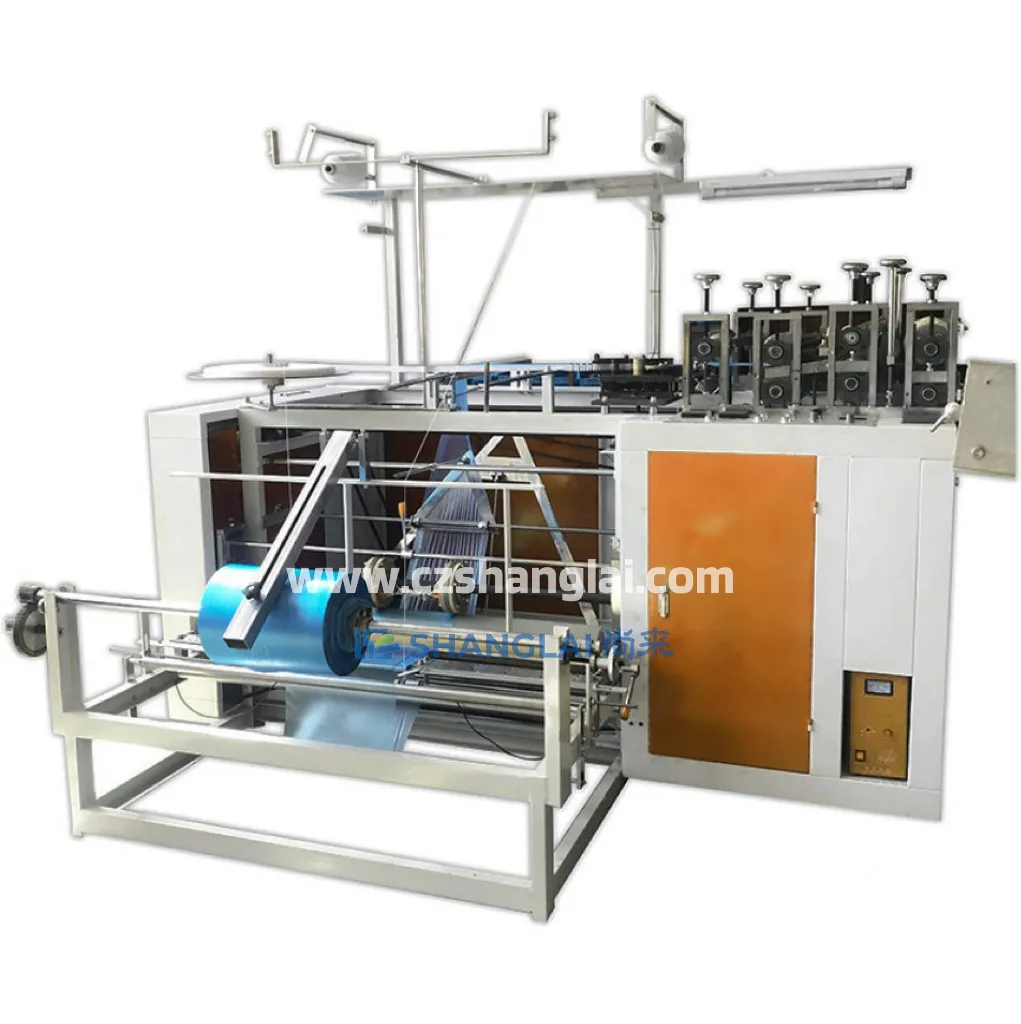

Automatic Disposable PE/CPE Boot Cover Making Machine

The Automatic Disposable PE/CPE Boot Cover Making Machine converts compatible plastic film and elastic into extended-height protective boot covers through automatic feeding, elastic attachment, welding, cutting and counting. Buyers may also search for a disposable bootie machine, knee-high shoe cover machine, long plastic overshoe machine or elastic boot cover production machine.

Machine Video

Technical Specifications

Actual output depends on film thickness, elastic behavior, boot-cover dimensions, weld pattern and operating conditions.

Integrated Process

• Film-roll feeding and folding
• Elastic feeding and tension control
• Boot-cover profile welding
• Finished-length cutting
• Automatic counting and set-quantity stop
• Automatic stop when elastic feeding is interrupted

Typical Applications

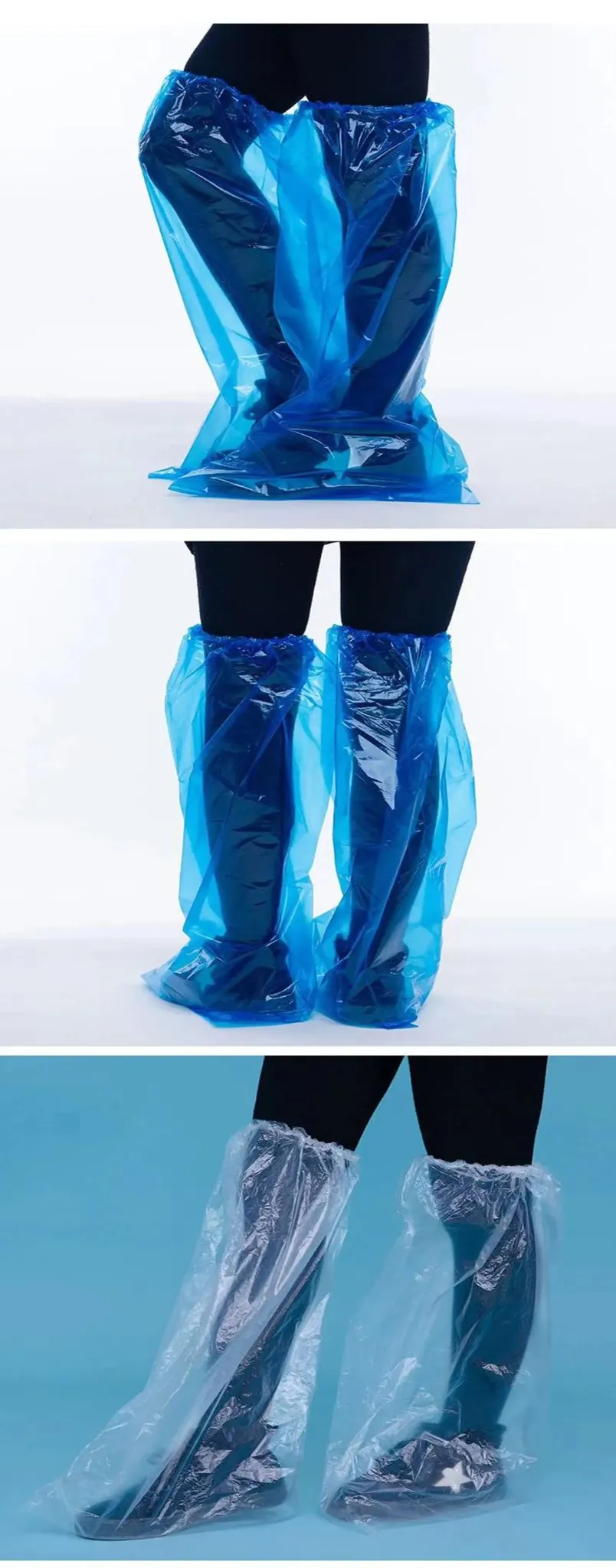

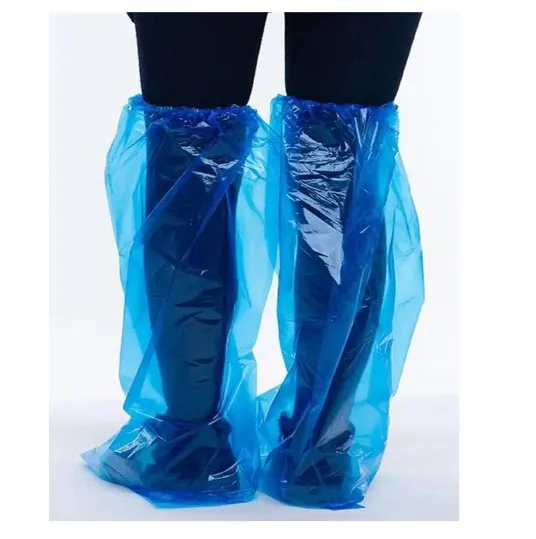

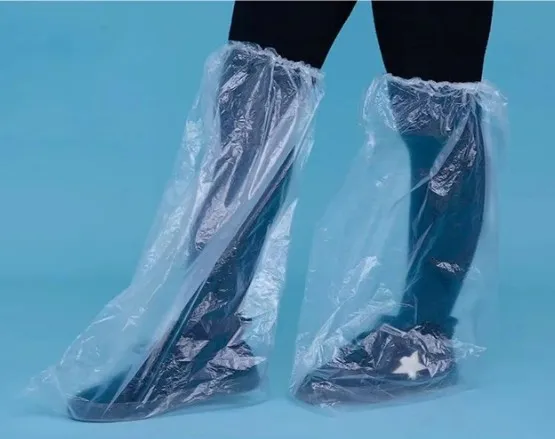

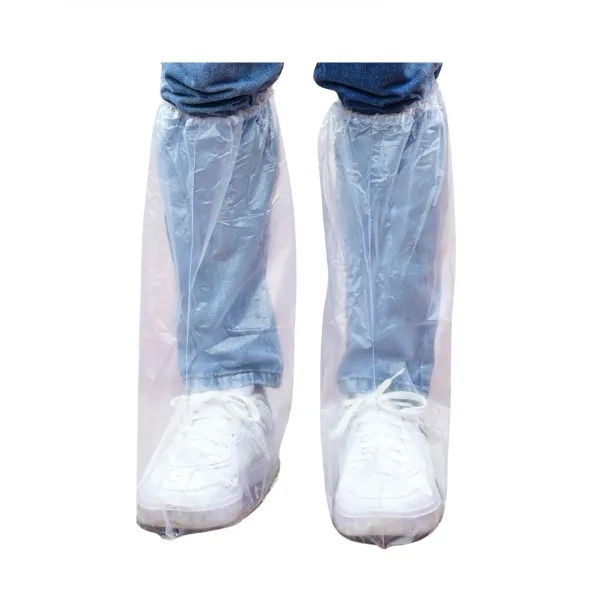

• Disposable PE or CPE extended boot covers after film testing
• Knee-high plastic overshoes for cleaning and general hygiene
• Protective boot covers for food processing and industrial handling
• Custom elasticated boot-cover profiles verified from drawings and samples

Process Boundary

This machine forms elasticated boot covers from prepared compatible film and elastic. It does not extrude or print the film, manufacture elastic, sterilize the finished covers, or pack them into bags or cartons. Film blowing, printing, inspection, stacking and packaging require separate confirmed equipment.

No medical grade, sterility, liquid barrier, chemical resistance or anti-slip performance is confirmed by the source data.

Information Required for a Quotation

• Finished boot-cover drawing, height, foot dimensions and samples
• Film material, thickness, width and roll diameter
• Elastic material, width and elongation
• Required weld pattern and cover shape
• Required pieces per minute
• Counting, stacking and bag-packing requirements
• Local voltage, frequency and destination country
