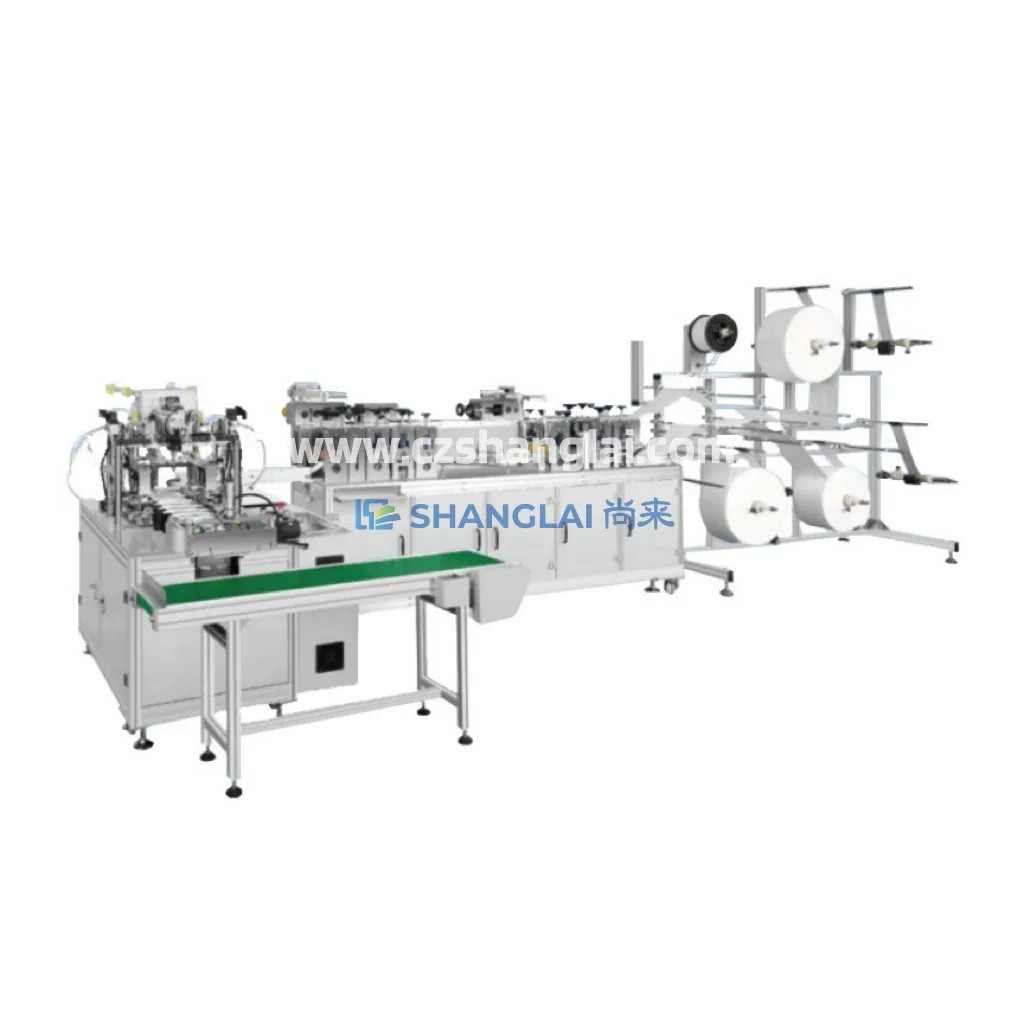

Automatic 3D Boat-Shaped Fish Mask Production Line
- 首页
- Automatic 3D Boat-Shaped Fish Mask Production Line
产品详细信息
The Automatic 3D Boat-Shaped Fish Mask Production Line produces horizontally folding, three-dimensional mask products with upper and lower flaps and attached ear loops. Buyers may also search for a KF94-style mask making machine, 3D boat mask production line, willow-leaf mask machine or fish-shaped face mask machine.
This product construction differs from a vertical center-fold respirator mask: the finished mask opens into a boat-shaped breathing chamber using upper and lower panels. The exact panel geometry, number of material layers, nose-piece arrangement and ear-loop welding positions must be matched to an approved sample.
视频
Typical Applications
- 3D boat-shaped disposable face masks
- Fish-shaped or willow-leaf mask products
- KF94-style mask shapes made to the buyer’s specification
- Private-label multi-panel masks with attached ear loops
Technical Parameters
| Operating speed | 60-100 pcs/min |
|---|---|
| Machine dimensions | 4500 × 1400 × 2100 mm |
| Source-image “discharge size” | 230-260 × Ø650 (meaning and unit to be confirmed) |
| 电源 | 220 V |
| Rated power | 5 kW |
These entries are transcribed from the supplied technical image. The item labelled “discharge size” is ambiguous in the source and must not be treated as a finished-mask dimension or roll specification until confirmed. Final specifications depend on tooling and configuration.
Product and Process Confirmation
| Finished profile | Horizontally folding 3D boat-shaped mask with upper and lower flaps |
|---|---|
| Material layers | Provide each layer’s type, GSM, width and roll specification |
| Nose piece | Confirm material, dimensions, location and feeding format |
| Ear loops | Confirm loop material, length, attachment points and welding pattern |
| Tooling | Panel outline, fold lines, welding pattern and cut profile require an approved sample or drawing |
| Packaging | Individual wrapping, counting and cartoning are not confirmed as part of this line |
Performance and Compliance Boundary
“KF94-style” identifies a commonly searched mask shape only. It does not establish Korean KF94 approval or any filtration, medical or respiratory-protection certification. Finished-product performance depends on materials, design, process validation and testing for the intended market.
Information Required for a Quotation
Please send finished samples and drawings, folded and opened dimensions, panel construction, all material-layer and roll data, nose-piece specification, ear-loop requirements, welding and cutting pattern, target speed, local power supply, applicable product standard and packing method. Please also clarify the source-image item described as “discharge size.”
