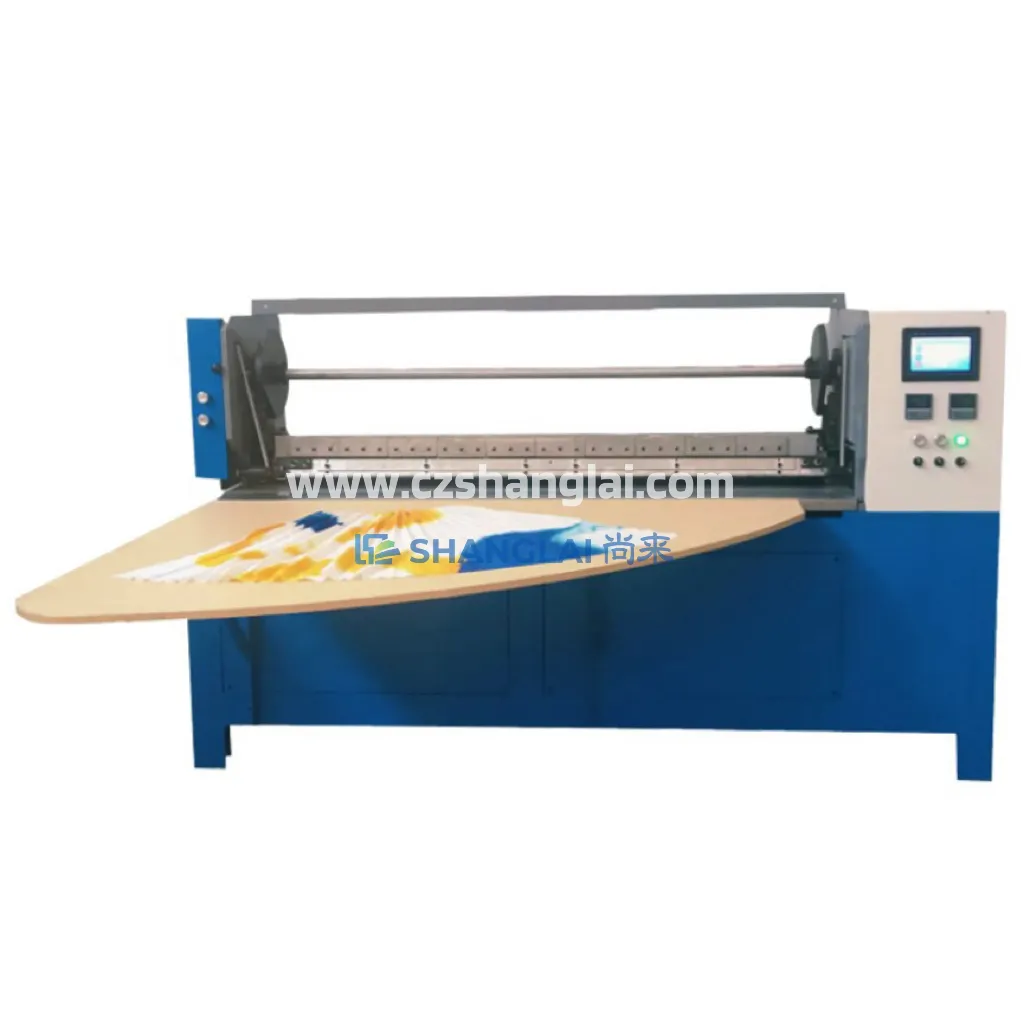

Automatic Garment Fan Pleating Machine
This machine forms fan, sunray, accordion and decorative pleats in pre-cut fabric pieces. Common international terms include fan pleating machine, sunray pleating machine, garment pleating machine, skirt pleating machine and piece-goods pleater.
The operator places the prepared garment panel or fabric piece on the worktable, selects the pleating settings and feeds it into the forming section. Mechanical folding and electric heat setting create repeatable pleat patterns while reducing manual marking and folding work.
Typical Applications
- Pleated skirts and dress panels
- Fan or sunray pleated fashion components
- Accordion and decorative textile panels
- Sample rooms and garment production workshops
Working Process
Pre-cut fabric placement → width and pleat setting → guided feeding → mechanical fold formation → heat setting → pleated-panel removal.
Process boundary: this machine pleats supplied cut pieces; it does not cut garment patterns, sew seams or assemble finished garments. Pleat shape and permanence depend on material composition, thickness, temperature and dwell time. Buyer-supplied sample trials are required before confirming suitability.
Technical Parameters
| Item | Specification |
|---|---|
| Working width | 1000-1600 mm |
| Pleating speed | 40 folds/min |
| Drive power | 1.5-2.25 kW |
| Electric heating power | 6 kW |
| Machine dimensions | 1800 × 1050 × 1300 mm / 2480 × 1050 × 1300 mm |
| Net weight | 550 kg / 600 kg |
The source image labels working width and pleating speed with mistranslated terms; values above retain the original numbers and units.
视频
Information Required for Quotation
Please send the fabric sample and composition, piece dimensions, required fan/sunray/accordion pattern, pleat pitch and depth, target output, available voltage and photos or drawings of the finished garment panel.
