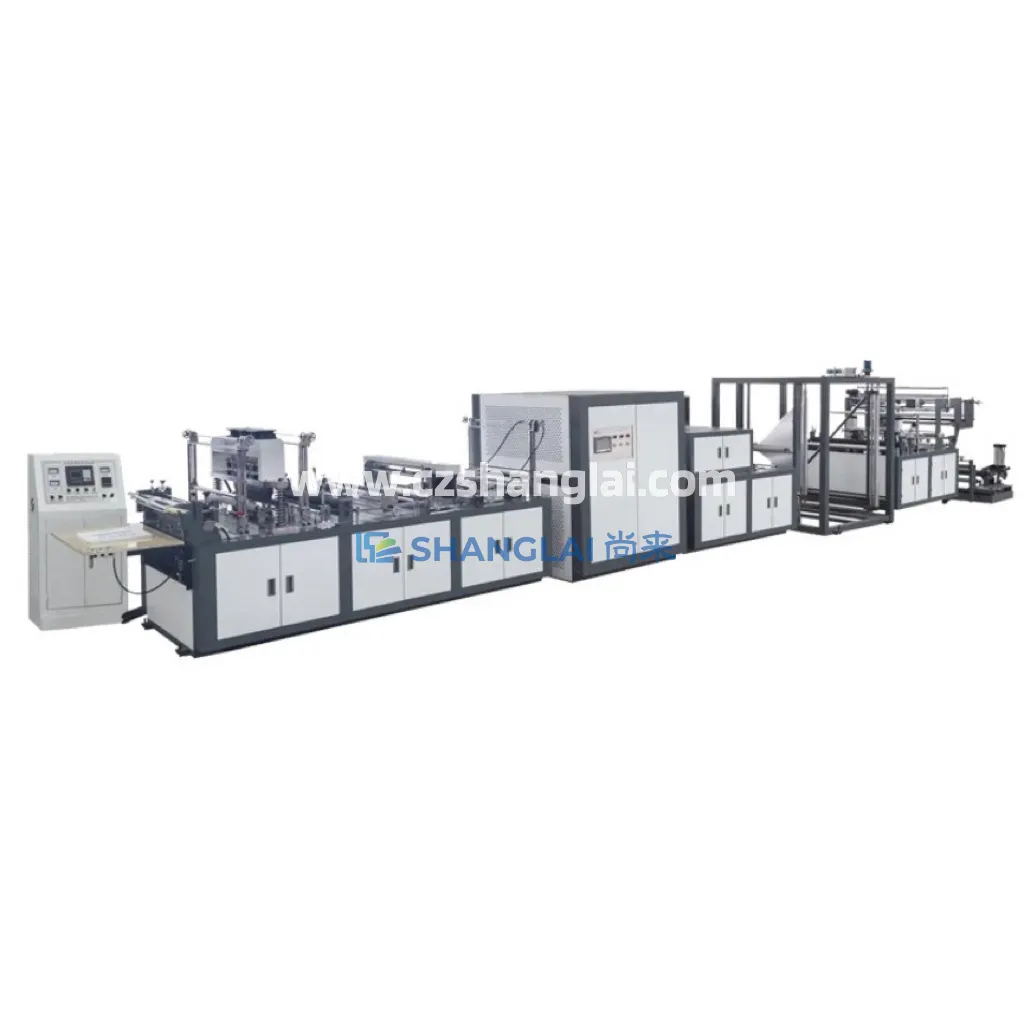

Automatic Ultrasonic Nonwoven Flat & T-Shirt Bag Making Machine

The Automatic Ultrasonic Nonwoven Flat & T-Shirt Bag Making Machine converts compatible nonwoven roll material into flat bags and vest-style or T-shirt bags using automatic feeding, length control, edge guiding, ultrasonic sealing, cutting and optional handle punching. Buyers may also search for a nonwoven vest bag machine, ultrasonic shopping bag machine or nonwoven flat bag production line.

Machine Video

Technical Specifications

Actual output depends on bag size, nonwoven basis weight, printed-mark tracking, ultrasonic weld settings and handle-punching cycle. The source thickness unit must be corrected in the final technical offer.

Integrated Process

• Nonwoven roll feeding and automatic edge correction
• Stepper-controlled length feeding
• Photoelectric registration for compatible printed material
• Ultrasonic bag sealing and cutting
• Optional automatic vest-handle punching
• Automatic counting and count alarm

Typical Applications

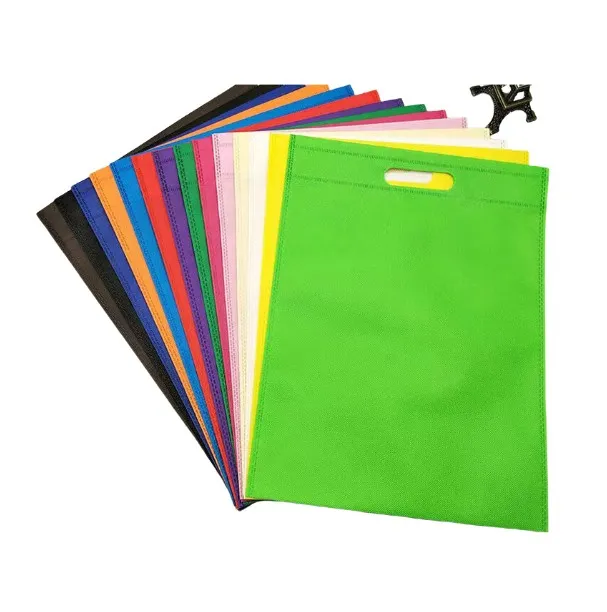

• Nonwoven flat bags

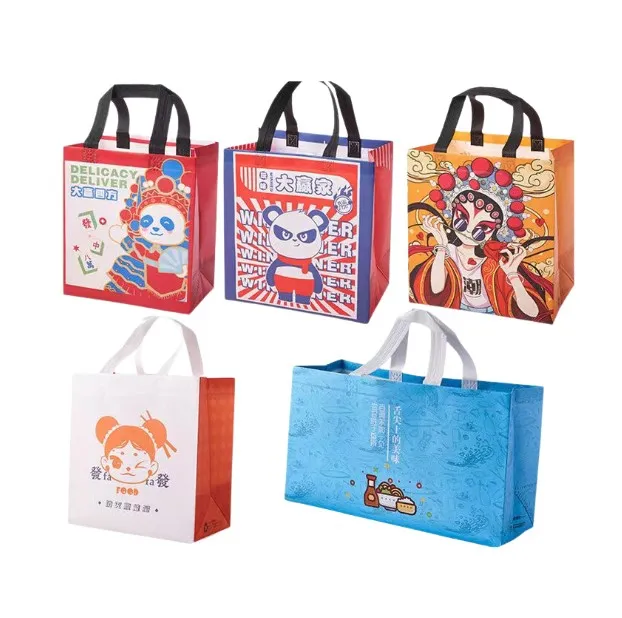

• Nonwoven vest or T-shirt shopping bags
• Promotional and general-purpose nonwoven bags
• Custom bag sizes within the confirmed tooling range

Process Boundary

This line converts prepared compatible nonwoven roll material into the selected bag format. It does not manufacture or print nonwoven fabric, automatically attach every reinforced handle design, fill bags with products or carton finished bags. Printing, handle reinforcement, inspection and downstream packing require separate confirmed equipment where needed.

Bag load capacity, weld strength, material compliance and environmental claims require testing by the buyer.

Information Required for a Quotation

• Finished bag type, dimensions, drawings and samples
• Nonwoven material type, basis weight, width and roll diameter
• Flat bag or vest/T-shirt bag configuration
• Handle shape and punching dimensions
• Printed or unprinted material and registration repeat
• Required bags per minute
• Local voltage, frequency and destination country
