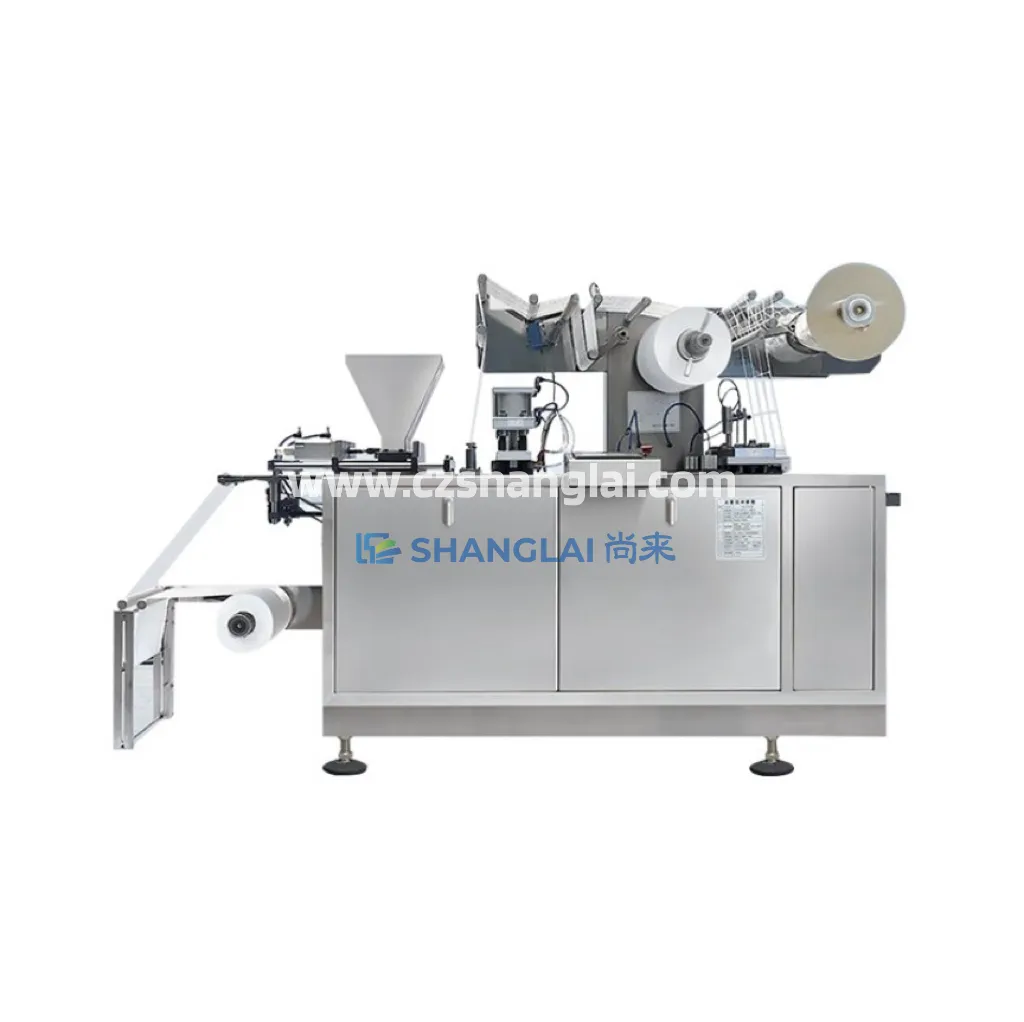

Automatic Disposable Hand Warmer Filling & Sealing Machine
- Home
- Automatic Disposable Hand Warmer Filling & Sealing Machine
Products Details
The Automatic Disposable Hand Warmer Filling & Sealing Machine forms heat-sealed nonwoven inner packs, meters the filling material and seals the finished pack. It is intended for disposable hand warmers, body warmer inserts and similar heat-pack products. Overseas buyers may also search for a hand warmer packing machine, heat pack filling machine or nonwoven warmer pouch machine.
Machine Video

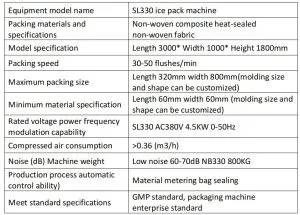

Technical Parameters
| Parameter | Specification |
|---|---|
| Model shown in source table | SL330 |
| Packaging material | Heat-sealable nonwoven composite material / nonwoven fabric |
| Machine dimensions (L x W x H) | 3000 x 1000 x 1800 mm |
| Packaging speed | 30-50 packs/minute |
| Maximum pack length | 320 mm |
| Maximum material width | 800 mm |
| Minimum pack/material size stated | 60 x 60 mm |
| Power supply | AC 380 V |
| Rated power | 4.5 kW |
| Frequency range | 0-50 Hz |
| Stated noise level | 60-70 dB |
| Machine weight | Approximately 800 kg |
Pack shape and tooling can be customized. Actual speed and size compatibility depend on the powder or granular filling material, target fill weight, nonwoven structure and sealing test results.
Production Functions
- Heat-sealable nonwoven material feeding
- Pouch forming matched to the selected tooling
- Filling-material metering and dispensing
- Bag sealing and finished pack discharge
Typical Applications

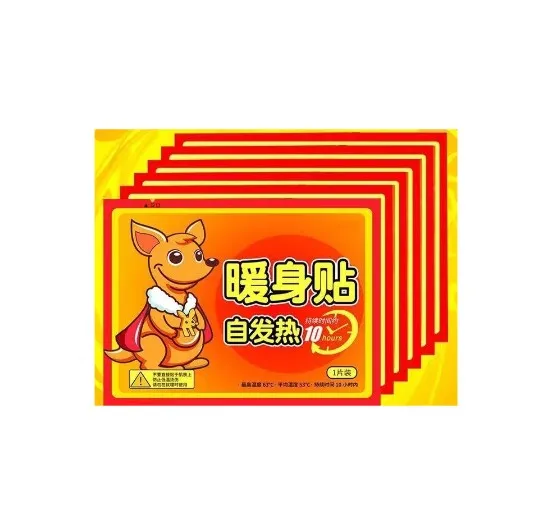

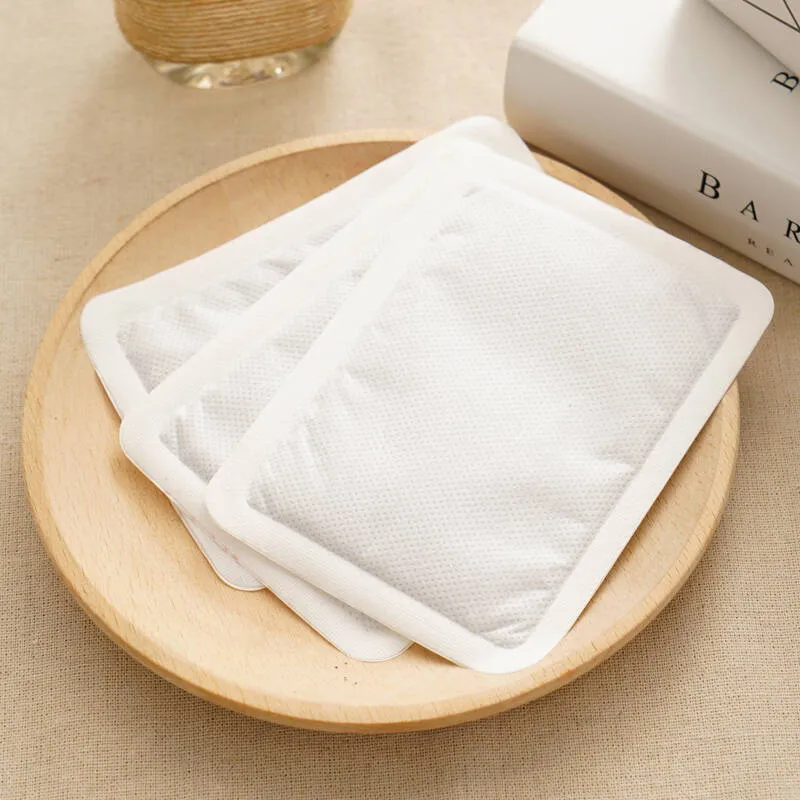

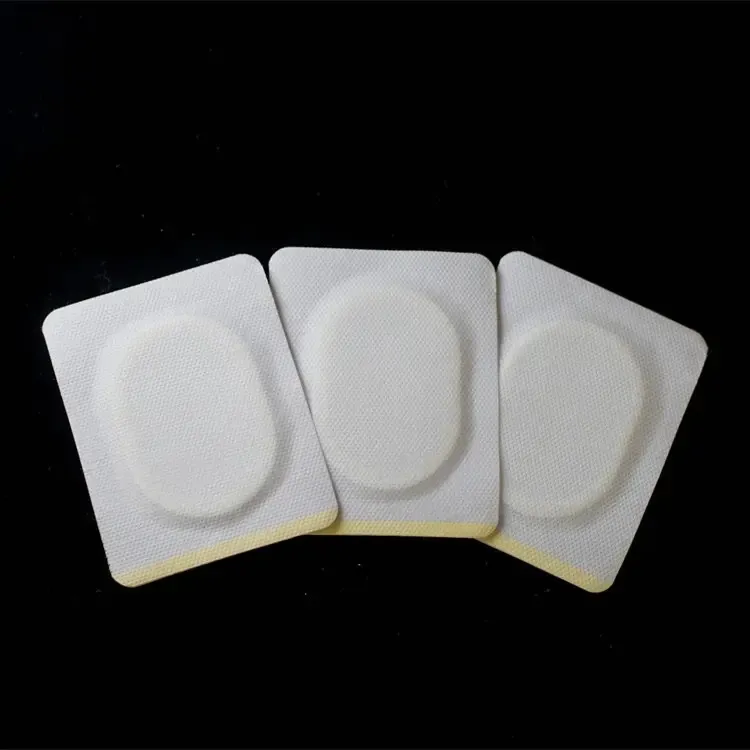

- Disposable hand warmer inner packs
- Body warmer and adhesive heat-pack inserts
- Foot warmer and pocket warmer products
- Similar nonwoven sachets containing compatible powder or granular material
Process Boundary
This machine forms, fills and heat-seals compatible nonwoven inner pouches using prepared filling material. It does not formulate or mix the heat-generating composition, validate heat output or shelf life, or manufacture the nonwoven material. Filling preparation, metal detection, checkweighing and product-performance testing are separate processes.
An airtight outer barrier pouch is normally required to limit premature air exposure. Outer-pouch packaging, date coding, inspection, cartoning and case packing require separate confirmed equipment unless specifically included.
Information Required for a Quotation
- Finished warmer type, shape and dimensions
- Filling-material composition, particle size and bulk density
- Target fill weight per pack
- Nonwoven material structure, thickness and roll dimensions
- Required production speed
- Product and material samples or dimensioned drawings
- Required power supply and destination country
- Whether an external barrier-pouch packaging machine is also required
