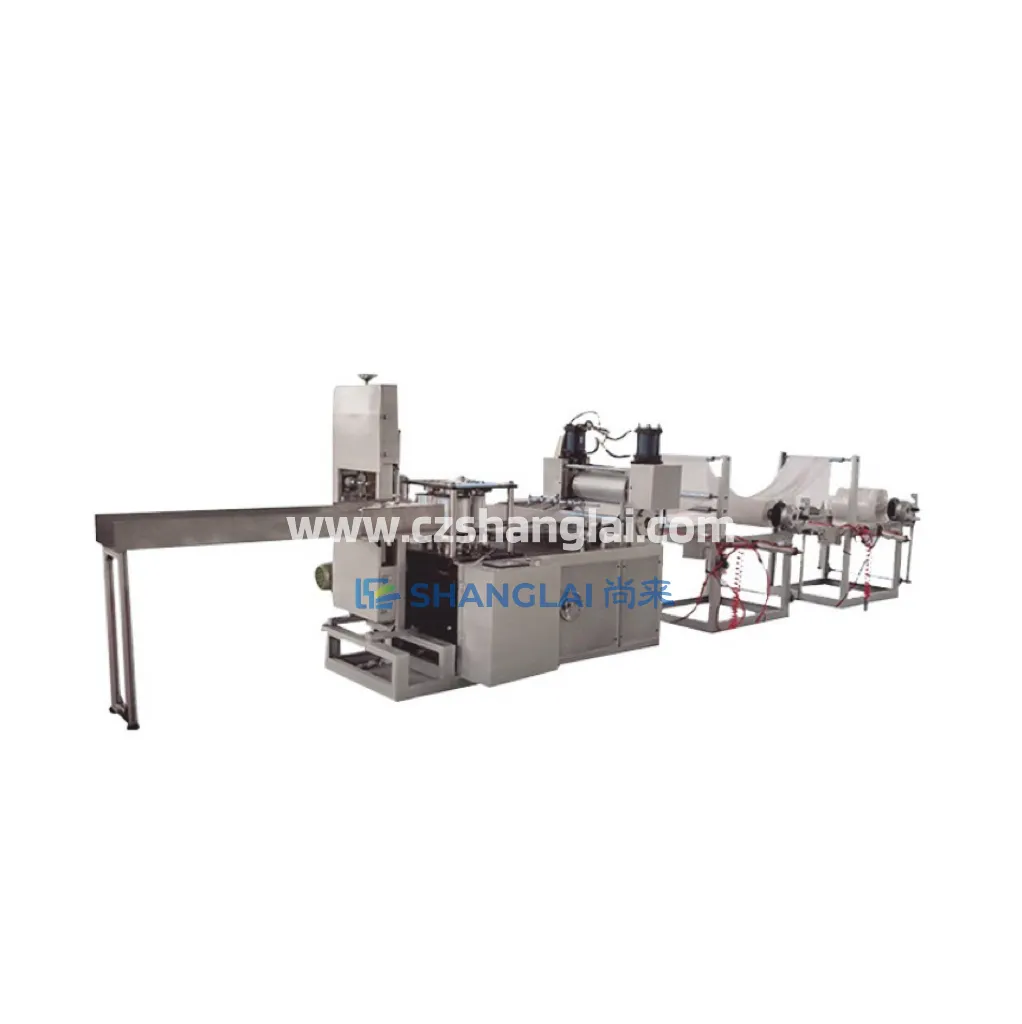

Automatic Dental Bib Making Machine
This high-speed converting line produces disposable dental bibs, dental patient towels and absorbent bib napkins from roll-fed materials. Common international sourcing terms include dental bib machine, dental patient towel making machine, disposable dental napkin machine and paper-poly dental bib production line.
The system automatically feeds the specified material webs, combines or bonds the layers, forms the required surface pattern, cuts the product to length and discharges/counts finished pieces. PLC control coordinates the process, and the production speed can be adjusted for the selected product specification.
Typical Applications

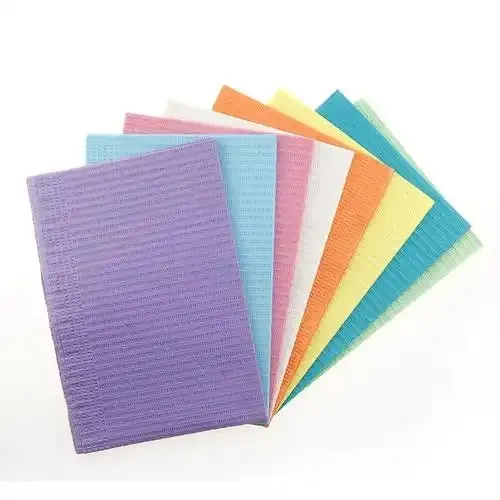

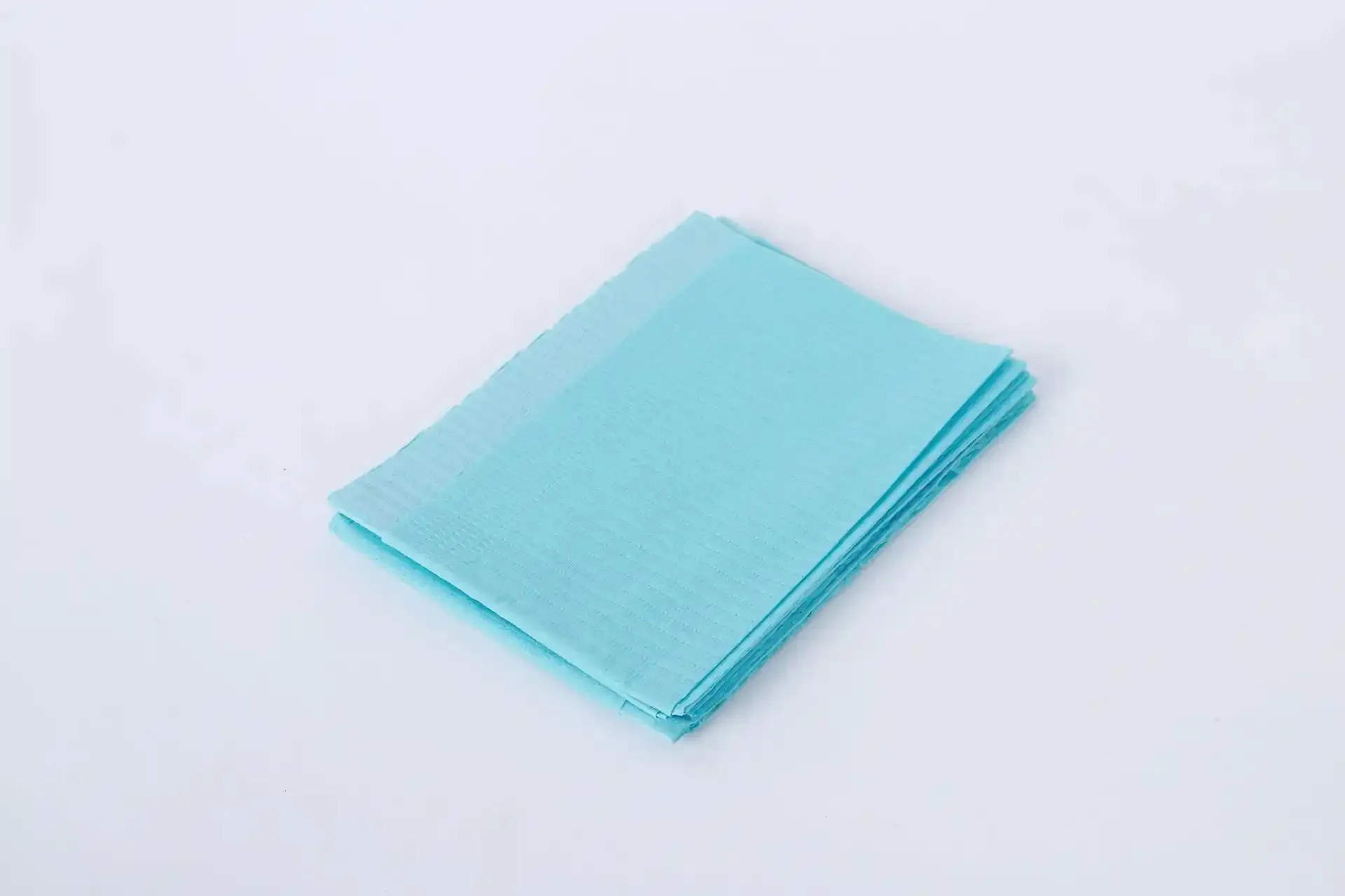

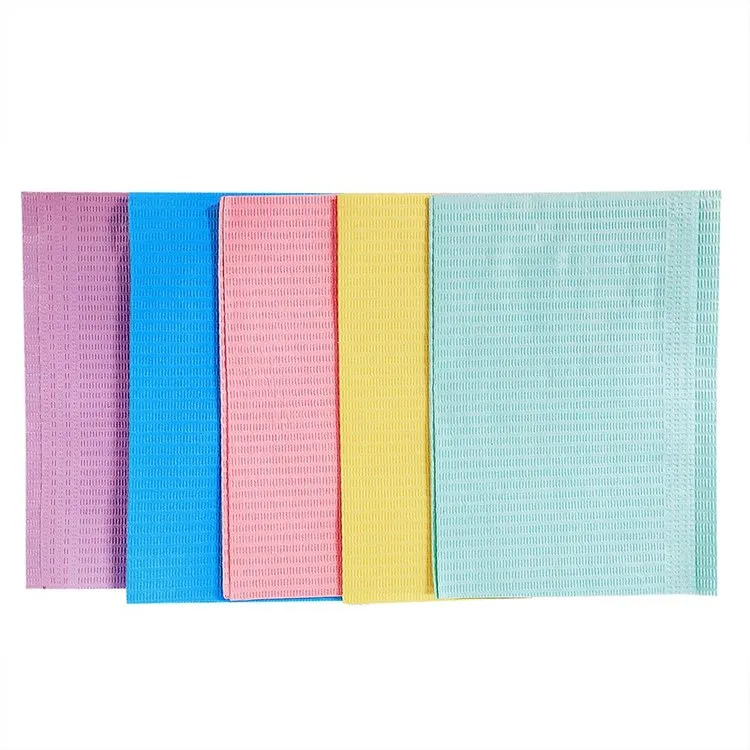

- Disposable dental bibs for dental clinics
- Dental patient towels and bib napkins
- Custom absorbent/protective sheets for oral-care use
- Contract manufacturing of private-label dental consumables
Production Process
Roll loading → web feeding and alignment → layer combining/bonding → embossing or pattern forming → fixed-length cutting → counting and discharge.
Process boundary: this equipment converts and cuts the bib material. Individual pouch packaging, sterilization and case packing are not included unless separately specified. The exact web materials, layer structure, absorbency, liquid-barrier performance and finished dimensions must be validated from the buyer’s sample; this page does not claim a particular medical grade or certification.
Technical Parameters
| Item | Specification |
|---|---|
| Production output | Up to 350 pcs/min |
| Machine dimensions | 3500 × 1600 × 1700 mm |
| Equipment weight | 1500 kg |
| Voltage | 220/380 V, 50 Hz |
| Power | 10 kW |
| Control system | PLC |
Note: the original parameter image places the output and dimensions beside mistranslated row labels; the values above are presented according to their evident units. Please reconfirm all specifications before ordering.
视频
Information Required for Quotation
Please send the finished bib sample or drawing, length and width, material names and basis weights, number of layers, lamination/bonding method, embossing pattern, required output, electrical supply and required downstream packing format.
