Automatic Nonwoven Grape Protection Bag Making Machine

The Automatic Nonwoven Grape Protection Bag Making Machine converts compatible nonwoven roll material and elastic into empty protective bags for grape clusters. Buyers may also search for a grape growing bag machine, fruit protection bag making machine, elasticated grape cover machine or vineyard bag production line.

Machine Video

Technical Specifications

Actual output depends on bag dimensions, nonwoven basis weight, elastic properties, weld design and operating conditions.

Integrated Process

• Nonwoven roll feeding and positioning
• Elastic-band feeding and tension control
• Bag folding and ultrasonic or heat sealing as configured
• Finished-length cutting
• Empty grape-bag discharge

Typical Applications

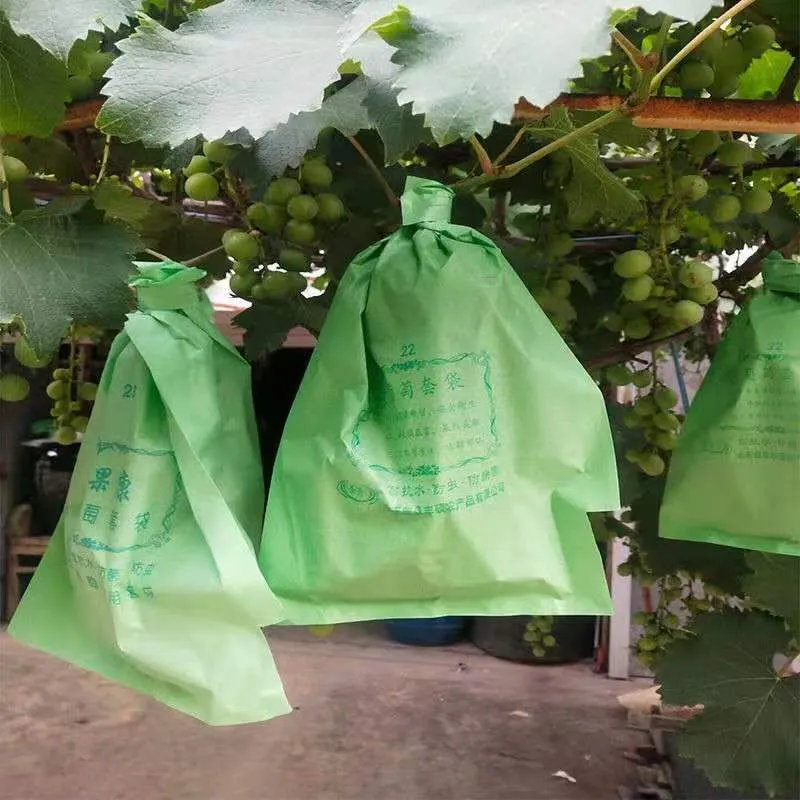

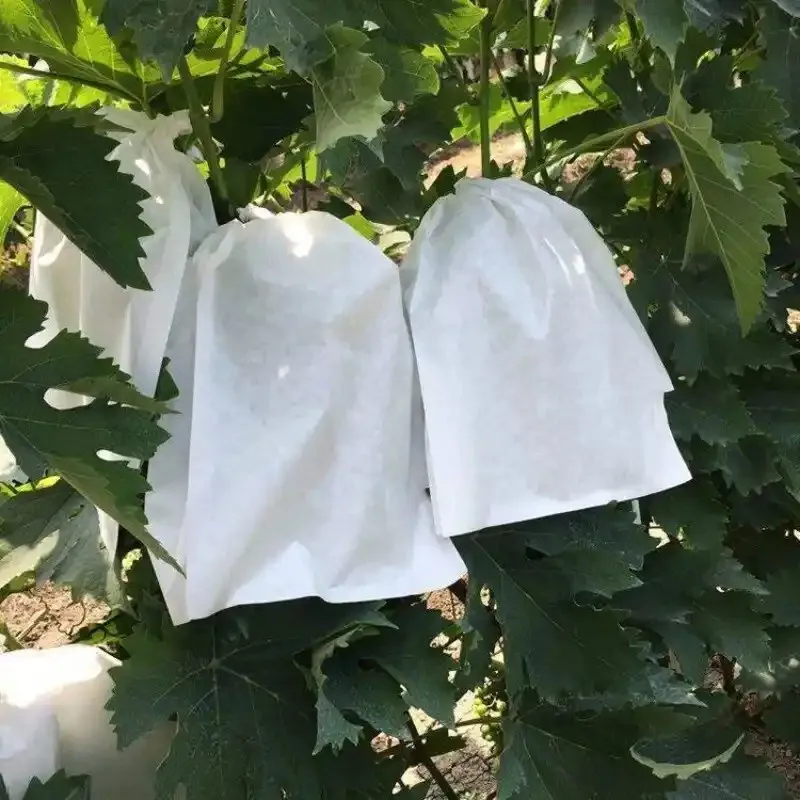

• Elasticated nonwoven grape cluster protection bags
• Vineyard fruit covers
• Compatible fruit-growing bags verified from samples
• Custom nonwoven agricultural protection bags

Process Boundary

This machine manufactures empty nonwoven fruit-protection bags. It does not grow, grade or pack grapes, and it does not automatically place bags over grape clusters in a vineyard. Nonwoven production, printing, field bag application, fruit packing and agricultural-performance testing are separate processes.

Weather resistance, breathability, pest protection, food-crop suitability and field service life require validation with the actual material and growing conditions.

Information Required for a Quotation

• Finished grape-bag photos, dimensions and samples
• Nonwoven material type, basis weight, width and roll diameter
• Elastic type, width and elongation
• Bag opening, seam and closure design
• Printed or unprinted material requirement
• Required pieces per minute
• Local voltage, frequency and destination country
