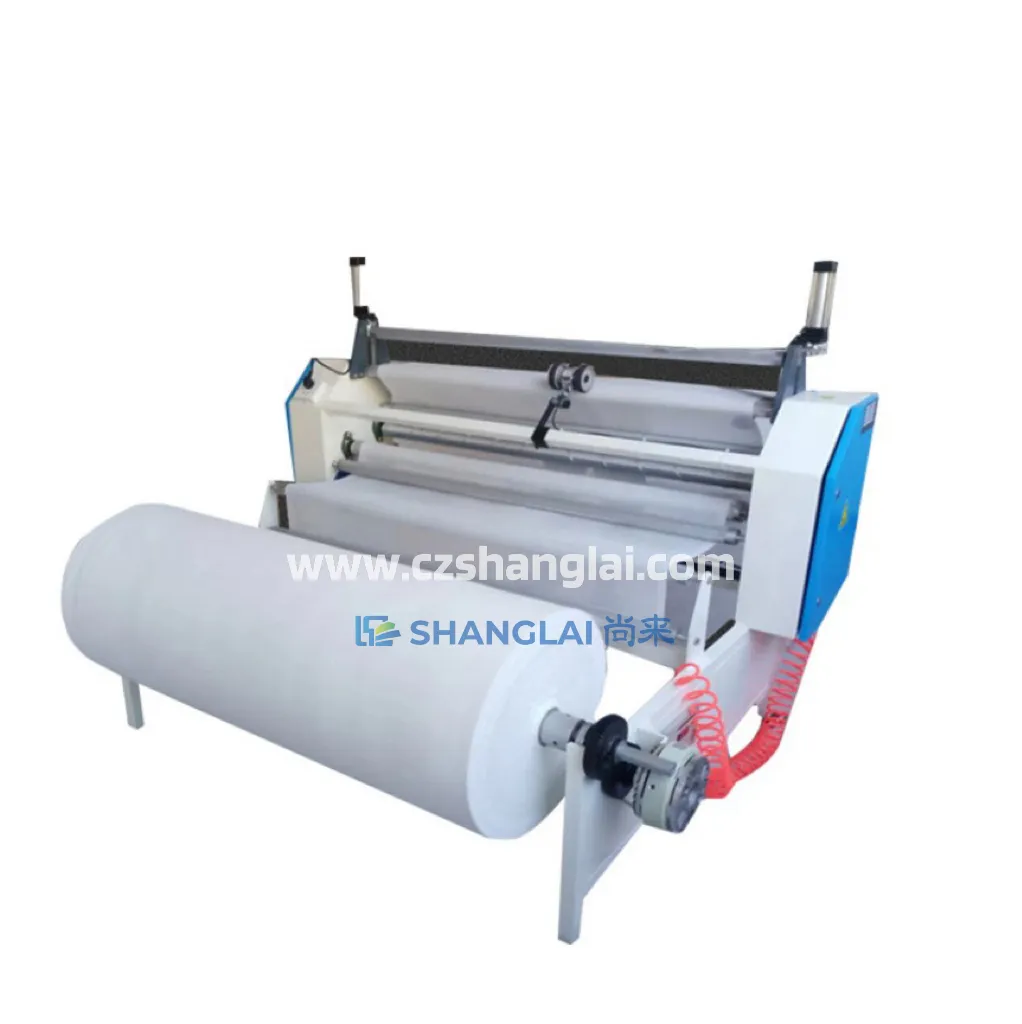

Automatic Medical Gauze Roll Rewinding Machine
This machine rewinds supplied gauze web or parent rolls into smaller rolls with controlled tension. Common sourcing terms include gauze roll rewinding machine, medical bandage rewinder, cheese bandage rolling machine and woven gauze roll machine.
The final configuration depends on incoming web width, weave, core type, roll diameter, roll firmness and transfer to downstream cutting or packaging.
Typical Applications
- Medical gauze rolls for downstream converting
- Bandage and dressing-material roll preparation
- Small gauze rolls produced from larger parent rolls
视频
Technical Parameters
| Item | Listed Specification |
|---|---|
| Operating speed | 30-40 m/min |
| Equipment size | 1800 × 1700 × 1700 mm |
| Equipment weight | 200 kg |
| Voltage | 220 V |
| Power | 2 kW |
Specifications are transcribed from the original parameter image. Actual speed depends on gauze width, weave, tension, roll diameter and operating conditions. Frequency and phase must be confirmed.
Process Scope and Configuration Notes
This page describes rewinding equipment. It does not establish that automatic roll cutting, gauze folding, bleaching, sterilization or individual packaging are included. The equipment does not manufacture gauze fabric. Medical grade, absorbency, sterility and regulatory compliance depend on the supplied gauze and downstream validated processes.
Information Required for a Quotation
- Incoming gauze material, weave, width and parent-roll dimensions
- Finished roll width, diameter, length/weight and firmness
- Coreless or core-wound construction and core dimensions
- Tension and edge-alignment requirements
- Required output and downstream cutting/packaging method
- Destination voltage, frequency and phase
