Automatic Single-Color Modeling Clay Extrusion & Packaging Machine
- 首页
- Automatic Single-Color Modeling Clay Extrusion & Packaging Machine
产品详细信息

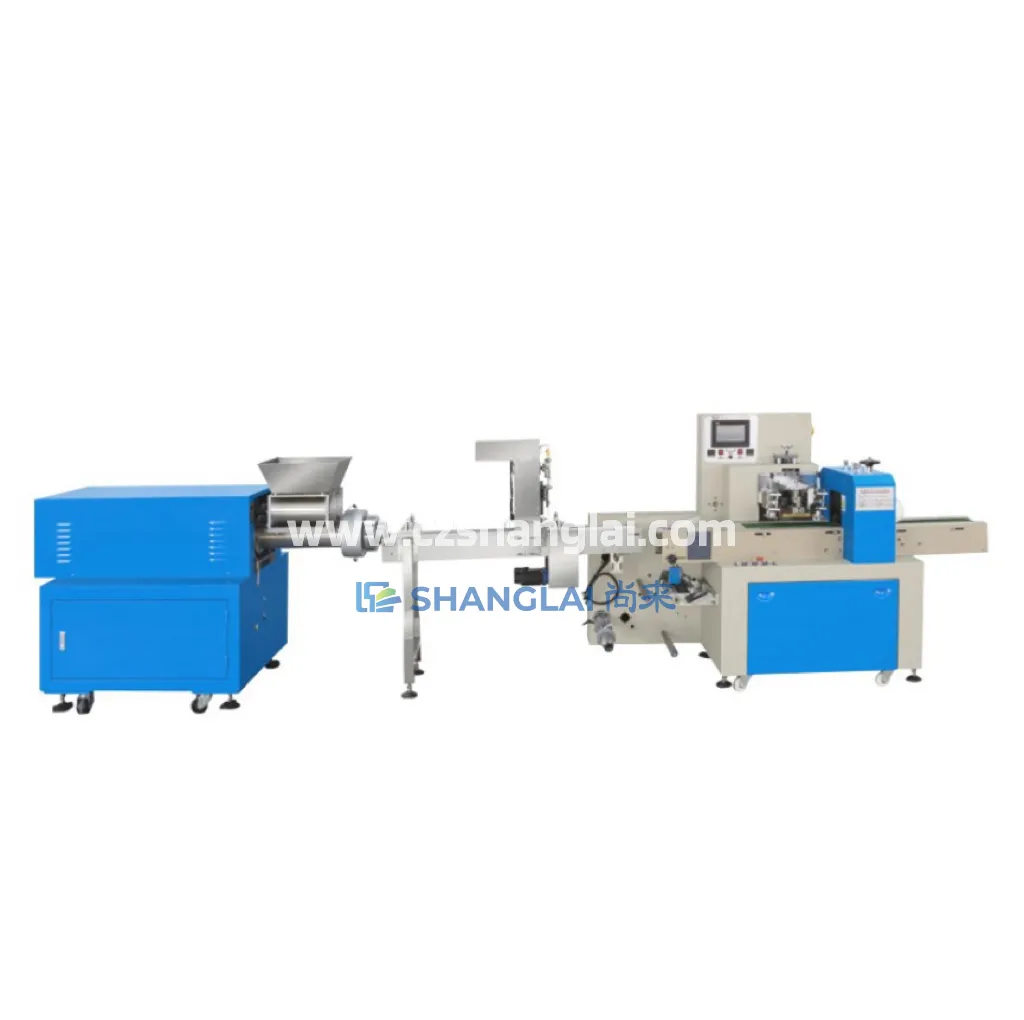

The Automatic Single-Color Modeling Clay Extrusion & Packaging Machine integrates clay feeding, servo extrusion, forming, portion cutting, film wrapping and date coding. It is designed for individually wrapped modeling clay, lightweight clay or plasticine portions. Customized multi-color lines are available only after the required color count and product format are confirmed.
Machine Video
Technical Parameters
| 参数 | Specification |
|---|---|
| Model shown in source table | SL-260 |
| Packaging film width stated | 80-220 mm |
| Maximum film width also stated | 320 mm; confirm against the selected configuration |
| Bag length | 50-200 mm or 100-280 mm, depending on configuration |
| Bag width | 30-150 mm |
| Product thickness | 10-45 mm |
| Maximum film-roll diameter | 350 mm |
| Film-roll core diameter | 70-80 mm |
| Rated power | 8 kW |
| Packaging speed | 100-300 packs/minute |
| Machine dimensions (L x W x H) | 4000 x 900 x 1500 mm |
| 机器重量 | 1000 kg |
The source table contains two different film-width entries. Final film width, output and portion accuracy must be confirmed from the clay formulation, target weight, extrusion shape and packaging film.
Integrated Process
- Modeling-clay feeding and servo extrusion
- Continuous profile forming
- Measured portion cutting
- Automatic film feeding and flow wrapping
- Date coding and finished pack discharge
Typical Applications

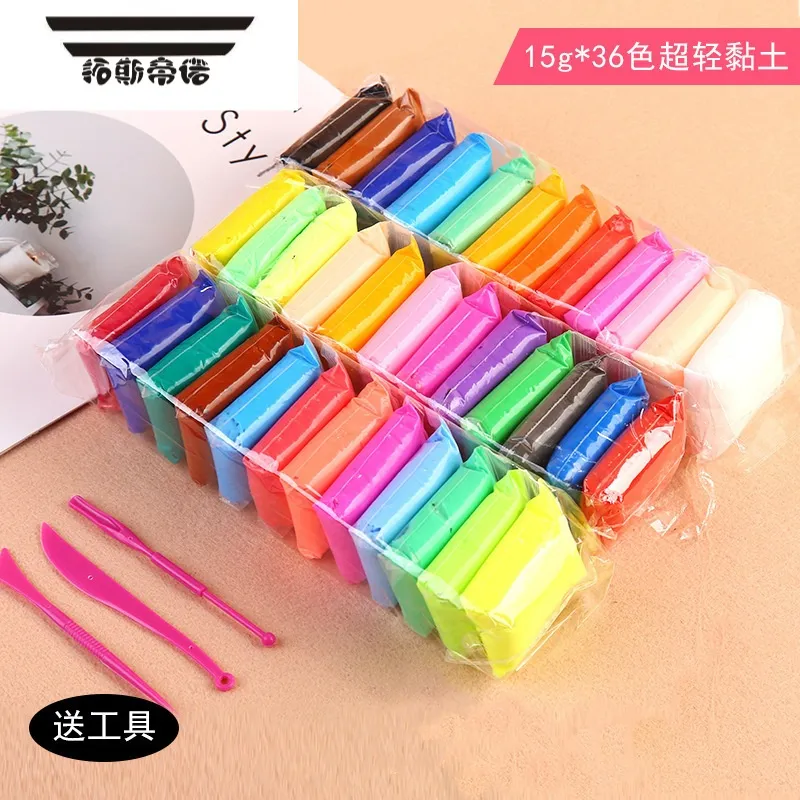

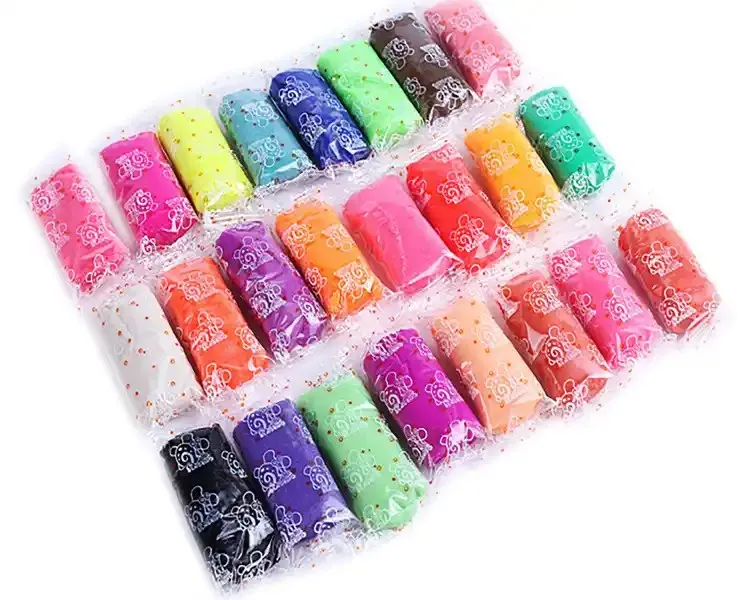

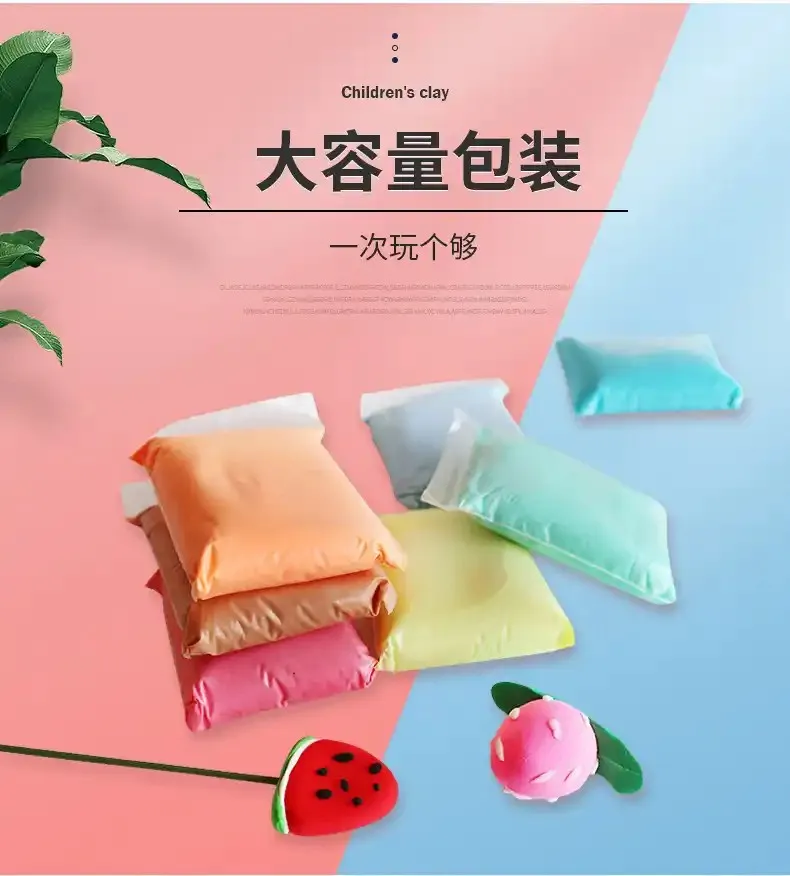

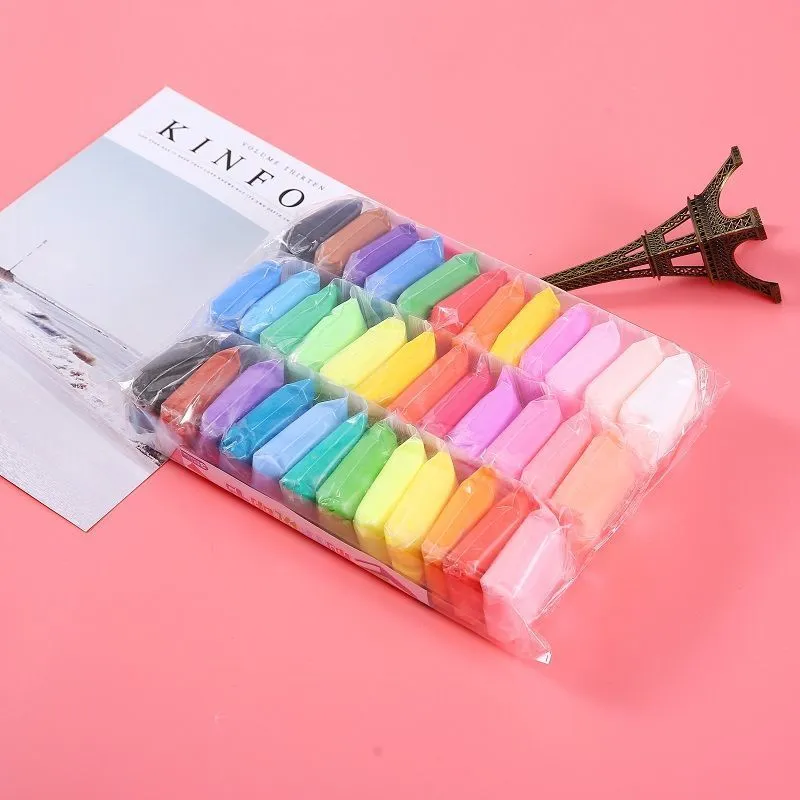

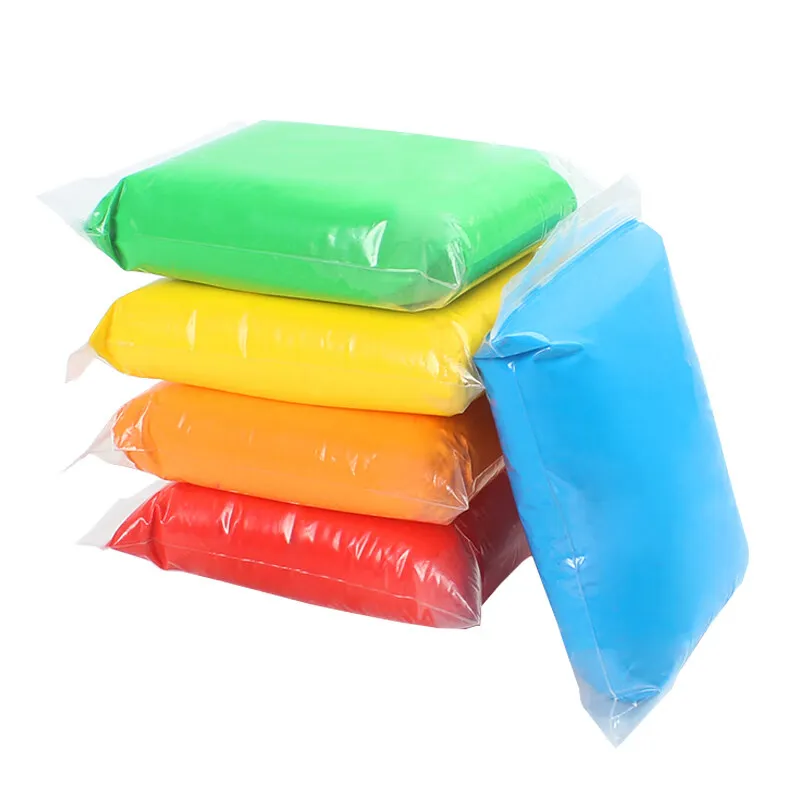

- Single-color modeling clay portions
- Plasticine sticks or blocks
- Lightweight air-dry clay products after compatibility testing
- Customized multi-color clay packs using a selected production-line configuration
Process Boundary
This line extrudes, portions and flow-wraps prepared, compatible single-color modeling clay. It does not mix raw ingredients, formulate or color the clay, remove air, cure or dry the product. Multi-color feeding, product stacking, inspection, cartoning and case packing require separate confirmed modules.
Extrusion stability, portion accuracy and seal quality must be tested with the actual clay formulation, operating temperature and packaging film.
Information Required for a Quotation
- Clay type, formulation, hardness and sample
- Target portion weight and permitted tolerance
- Finished clay shape and dimensions
- Number of colors and pack arrangement
- Packaging film structure, width, thickness and print repeat
- Required packs per minute
- Product and film samples or dimensioned drawings
- Required power supply and destination country
